If you’re looking for some serious peace of mind this winter, taking about an hour to install heat tape can save you from the disaster of a burst pipe. The secret to success is in the setup: a clean pipe, a quick test of the cable, and using a GFCI outlet are musts.
Rushing the job or using the wrong materials risks fire hazards, electrical shock, or a failed system that leaves your pipes vulnerable to bursting. I’ll walk you through each step with tips from plumbing and electrical experts to help you do the job safely.
| Project Difficulty: Intermediate (Requires understanding of electrical safety) Estimated Time: Under 1 hour Project Cost: $30 to $100 (materials only) Potential Risks: Electrical shock, fire hazard, and water damage from improper installation. When to Call a Pro: If you don’t have a GFCI outlet, if you have old or corroded pipes, or if you are unsure about any step. |
Supplies Needed
- Tape measure
- Cleaning rags
- Safety glasses and gloves
- UL or CSA-certified heat tape kit
- Fiberglass tape
- Non-flammable pipe insulation (fiberglass is recommended)
Before You Start
Heat tape takes a surprising amount of prep work to install properly. The most important thing to consider at this stage is whether or not it’s even the right choice for your plumbing. For many homes, insulation works just as well.
“If your pipes are in an area that stays above 20°F and you can wrap them with at least one inch of foam insulation, skip the heat tape entirely,” advises Mike Counsil, owner of Counsil Plumbing.
But if your pipes have a history of freezing pipes, insulation alone won’t cut it. “Insulation only slows heat loss but won’t add heat back,” explains Clay Hamilton, President of Grounded Solutions. He notes that pipes in unheated spaces that drop below freezing for more than six hours are “prime candidates” for heat tape.
Read more: How to Unfreeze Pipes in Your House

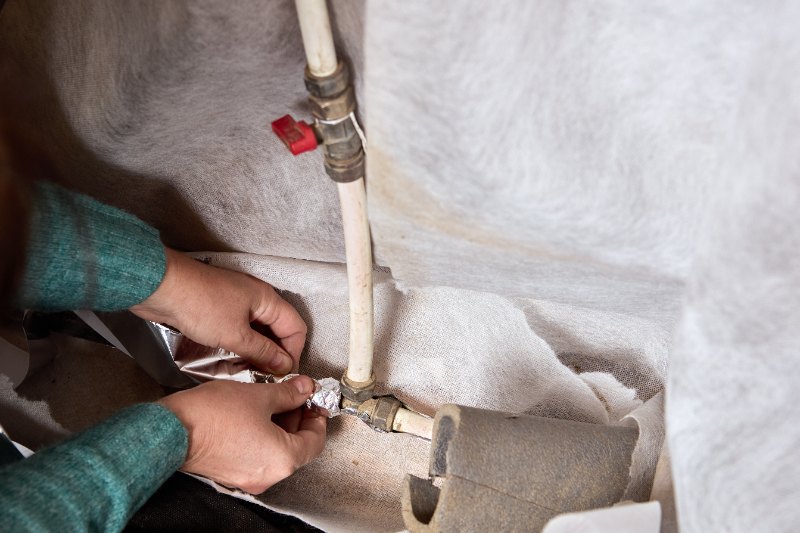

Choose the Right Kind of Heat Tape
Next, you’ll need to pick the right type of heat tape for your pipes. There are two main kinds: constant-wattage and self-regulating. Constant-wattage cables are either 100% on or 100% off, while self-regulating cables automatically adjust their heat output based on the surrounding temperature.
For a little extra money, the pros prefer self-regulating. “Self-regulating heat tape is worth the extra $40 because it adjusts output based on pipe temperature, unlike constant-wattage tape that runs full-blast,” says plumber Mack Blair, owner of Blair & Norris.
*Note: This is especially important for plastic pipes. If you have PEX or PVC, you must use a self-regulating cable that is certified as safe for plastic. The wrong type can get too hot and melt the pipe.
Figure Out the Length You Need
Now it’s time to measure. Start by getting the total length of the pipe you need to protect. Next, you’ll need to add extra length for any valves, faucets, or supports on the line, as these components also need protection.
A good rule of thumb is to add extra cable for each fitting based on the pipe’s diameter. For example, a 1-inch pipe valve might require an extra 2 feet of cable, while larger valves could need 4 feet or more.
Check the heat tape’s packaging for a specific guide. Most kits cannot be cut shorter, so avoid oversizing the cable.
Test the Heat Tape Before Installing
Here’s a pro tip that can save you a ton of time and hassle. A quick test before you attach the cable ensures it’s working properly right out of the box.
- Carefully uncoil the entire length of the heat tape.
- Plug the cable into a GFCI-protected outlet.
- Place a bag of ice directly on the thermostat block (the small piece where the power cord meets the heated cable).
- Wait about 20 minutes. The heated part of the cable should feel noticeably warm to the touch.
- Once you’ve confirmed it works, unplug it and you’re ready to go.
Step 1: Prep the Pipe for Installation
A little prep work goes a long way. You’ll want to make sure the pipes are clean, dry, and in good shape before you apply the heat tape.
- Check for leaks: Never install heat tape over a leaking pipe. Even a small drip can short out the cable.
- Clean the surface: Give the pipe a good wipe-down to get rid of any dust, dirt, or grease.
- Inspect the pipe itself: Counsil warns against putting heat tape on old, corroded pipes. “I pulled one apart during an inspection where the heat tape was baking 40-year-old rust, and the homeowner didn’t realize the pipe was about to fail anyway,” he recalls.
- Smooth sharp edges: On metal pipes, run your hand along the surface to feel for any sharp edges that could damage the cable and file them down.

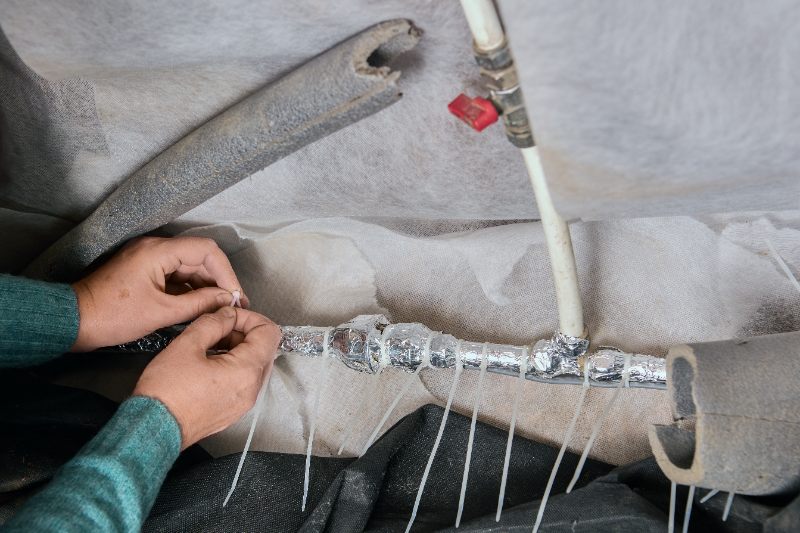

Step 2: Attach the Heat Tape
How you attach the heat tape is key to making sure it works correctly and safely all winter.
What to do:
- “Run your heat tape in a straight line along the bottom of the pipe where cold air settles, not spiraled around it,” advises Blair.
- Secure the tape every 6 to 12 inches using only the aluminum foil tape or fiberglass tape that comes with your heat tape kit. Never use duct tape or zip ties, which break down or damage the cable.
- Position the thermostat sensor on the coldest end of the pipe run, then secure it tightly with aluminum foil tape on both sides to ensure accurate temperature readings.
*Warning: Keep a safe clearance from valves and fittings. Hamilton warns: „Pay attention to the manufacturer’s minimum approach distance from valves and fittings—usually 2-3 inches. I’ve seen melted plastic valve handles where someone wrapped heat tape right over a gate valve.”
Always follow the manufacturer’s specific instructions for looping cable around valve bodies while avoiding direct contact with handles.
Step 3: Insulate Over the Heat Tape
You’re almost done, but don’t skip this important step. Insulation is what holds in the warmth the cable produces.
Counsil has seen what happens when people forget this part. “The insulation is what actually traps the heat,” he says. “I’ve seen people run heat tape and leave it exposed, which wastes 40 to 50% of the heat into open air.”
Cover the entire pipe, cable, and thermostat with at least a half-inch of non-flammable fiberglass insulation. If the insulation you’re using doesn’t have a built-in waterproof cover, you’ll need to add a plastic vapor barrier or wrap to keep it dry.
*Warning: Make sure you use non-flammable insulation, like fiberglass. Foam or vinyl can be a fire hazard when paired with heat tape.
Step 4: Plug It In and Give It a Test
With everything in place, it’s time to power it up. Plug the heat tape directly into a GFCI-protected outlet—remember, no extension cords.
- Test the outlet: Press the “TEST” button on the GFCI. You should hear a click as the power shuts off. Then press “RESET” to turn it back on. If that doesn’t happen, the outlet is faulty and you’ll need to replace your GFCI.
- Check for warmth: Let the heat tape run for about an hour, then feel the outside of the insulated pipe. It should be slightly warm to the touch. Many plugs have an indicator light; remember this only shows the outlet has power, not that the cable is actively heating.
*Note: If the pipe isn’t warm after an hour, unplug immediately and check that the cable isn’t damaged. Inspect all connections and ensure the thermostat sensor is properly positioned. If problems persist, consult the manufacturer’s instructions or contact a qualified electrician.
Safety Tips
Your safety is the top priority with this project. Improperly installed heat tape can be a serious fire hazard, so it’s important to follow a few key rules.
Always read and follow the instructions that come with your specific product. Check your local building codes to see if you need a permit for this kind of electrical work.
Here’s what the experts say you absolutely need to do to stay safe:
- Always Use a GFCI Outlet: “Water pipes mean moisture, and moisture plus electricity equals shock risk. Before you even unbox the heat tape, verify you’re using a GFCI outlet or breaker,” warns Hamilton. Never use an extension cord; always plug directly into a GFCI outlet.
- Check Your Home’s Wiring: For older homes, have an electrician check if your panel can handle the extra load. Counsil notes that he has seen fires start from overloaded circuits on older, outdated wiring systems.
- Use Insulation Correctly: Only use non-flammable fiberglass insulation over your heat tape. Blair warns against installing it on pipes that already have foam insulation, as this can cause dangerous overheating.
- Don’t Overlap the Cable: Never overlap or cross the heat tape over itself unless the instructions specifically allow it for your self-regulating model. This common mistake creates a serious hot spot and a major fire risk.
- Inspect Your Gear Annually: Inspect your heat tape every fall before the cold weather arrives. Look for cracks, frayed spots, or any char marks, especially near the plug, and replace the entire unit if you find damage.
*Warning: Never install heat tape inside walls, floors, or ceilings, and keep any combustible materials at least a half-inch away from the finished installation. Only use heat tape on water-filled supply lines; never use it on drain lines, fuel lines, or hoses.
FAQ About Installing Heat Tape
For plastic pipes like PEX or PVC, you should always use a self-regulating heat tape that’s certified for plastic. For metal pipes, either type will work, but pros recommend self-regulating for its safety and energy-saving features.
Standard heat tape that you buy at the hardware store cannot be placed inside a pipe. However, there are specialized, professional-grade systems that are designed for this purpose, which are often used for pipes that are buried or hard to access.
Pipe heat tape typically reaches between 60°F to 85°F when operating in cool environments, though some models may reach up to 150°F. Self-regulating cables adjust output based on surrounding temperature, while constant-wattage types require thermostats for temperature control
Final Tip: Keep Your Home Safe and Warm
Installing heat tape correctly is a great way to protect your home from burst pipes, but it’s a job that requires care and attention to detail. As Hamilton puts it, “heat tape done wrong creates serious fire hazards we catch during safety inspections.”
If you feel unsure at any point, especially when it comes to the electrical side of things, don’t hesitate to call a licensed professional.
Home Gnome delivers the best home service experience at the click of a button. Book reliable, skilled services in seconds and leave the rest to us.
Read more:

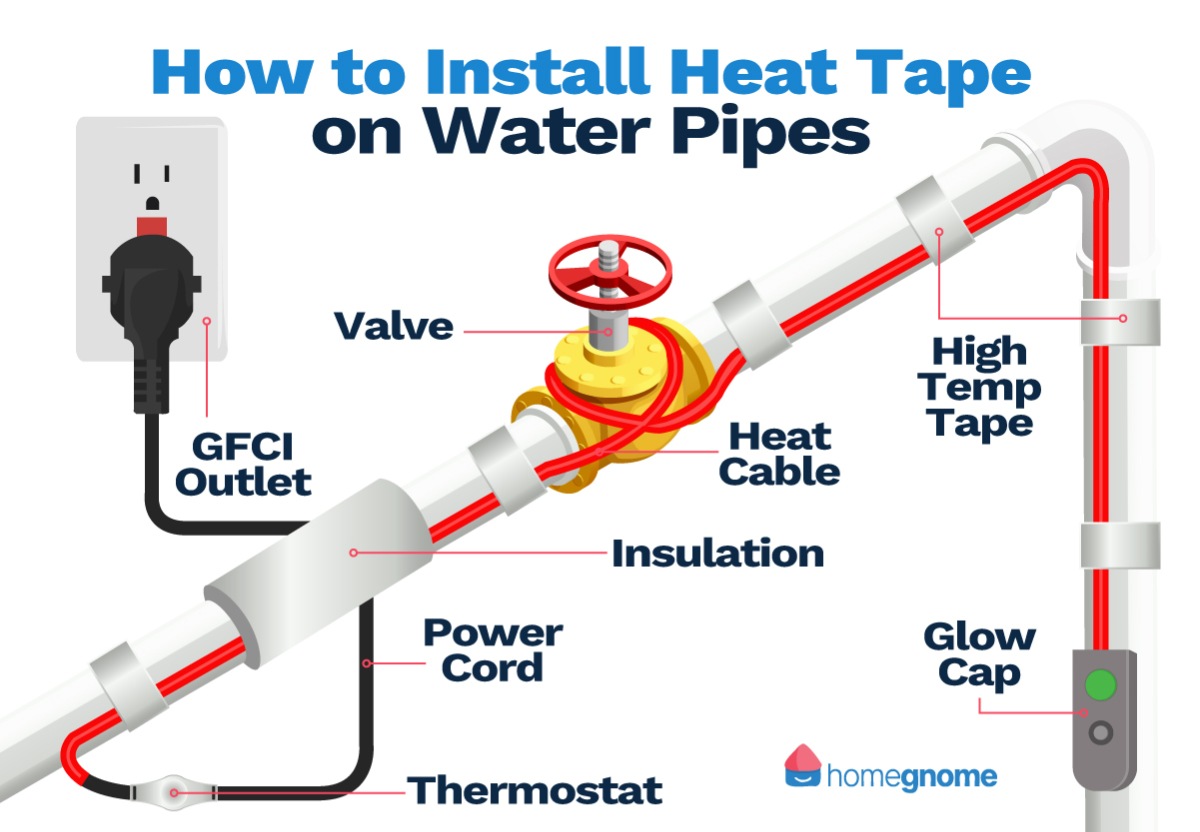

Main Image: Infographic by Aris Berroya
