Aside from being portable and flexible, one of the biggest advantages of a portable air conditioner is its easy installation and maintenance. It keeps your room cool without affecting the outside appearance of your home.
Yes, that is right. With a portable AC, you do not need to drill holes in your walls or make any permanent changes to your home. Just vent it through a window using the included kit, and you are all set to stay cool indoors.
In this guide, you will learn how to correctly install a portable air conditioner and vent it through a window to keep your room cool and comfortable.
| Project difficulty: Intermediate Estimated time to complete: 1 to 2 hours Project cost: None |
Supplies Needed
Tools
- Screwdriver
- Pencil
Steps to Install a Portable AC
Step 1: Unbox and Identify Portable AC Components
Begin by unpacking your portable air conditioner and setting aside all packaging materials. Take some time to go through the user manual and get familiar with the unit. It is important to read the instructions carefully and keep both the manual and warranty documents in case you need them later.
After that, make sure you have all the necessary parts included. Most portable air conditioners come with a window installation kit, which typically includes the following components:
- Two window slider plates
- Exhaust hose
- Window slider adaptor
- Foam seals (Adhesive and non-adhesive)
- Unit adaptor
- Exhaust hose adaptor
- Wall exhaust adaptor
- Power cord adaptor
- Security bracket and screws
- Drain hose
Manufacturers design the window installation kit to fit most standard windows. It fits vertical-sliding windows that are 18 to 50 inches wide and horizontal-sliding windows that are 18 to 50 inches tall. Once you confirm that all components are present, you can proceed with the installation.
Step 2: Choose the Right Location
Before installing your portable air conditioner, it is important to pick the right spot. Place the unit on a level floor near both a window and a grounded electrical outlet. The closer the AC is to the window, the more efficiently it can vent warm air outside. Avoid using extension cords, and make sure the outlet has a leakage protection device for safety.
Leave at least 20 inches of space around all sides of the unit to ensure proper airflow and ventilation. Keep the area clear of furniture, curtains, plants, or anything blocking the vents.
If your unit has a continuous drain option, consider positioning it near a sink, tub, or placing a bucket underneath the hose. Also, make sure you can easily access the water reservoir to drain when needed.

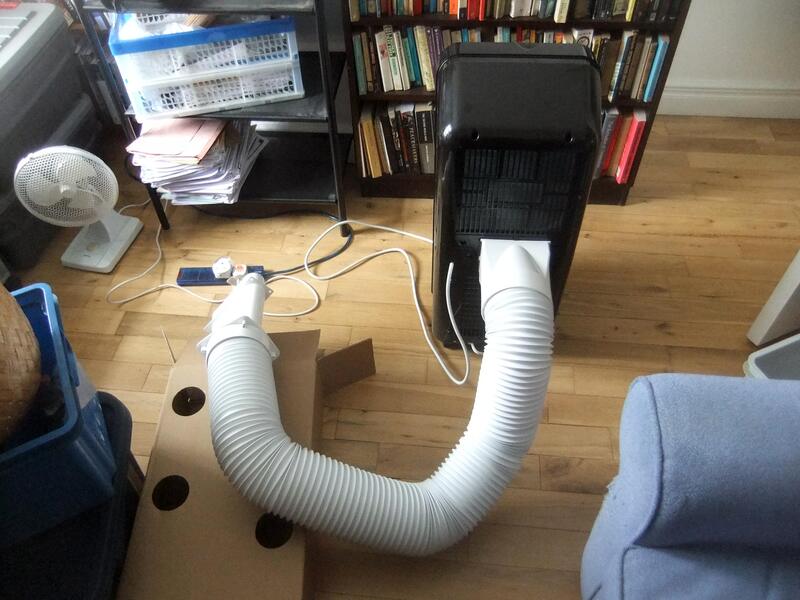

Step 3: Assemble the Exhaust Hose
First, connect the exhaust hose adaptor to one end of the hose and the unit adaptor to the other end. We refer to this setup as the exhaust hose assembly, and it plays a key role in venting hot air out of the room.
Once you complete the assembly, insert the unit adaptor into the exhaust port at the back of the portable air conditioner. Make sure it fits snugly to prevent any air leaks during operation.
After connecting the hose, gently pull it to extend its length. The exhaust hose can stretch up to about 5 inches, giving you enough flexibility to reach the window without straining or bending the hose too sharply. Avoid overextending or twisting the hose, as this can reduce airflow and affect the unit’s performance.

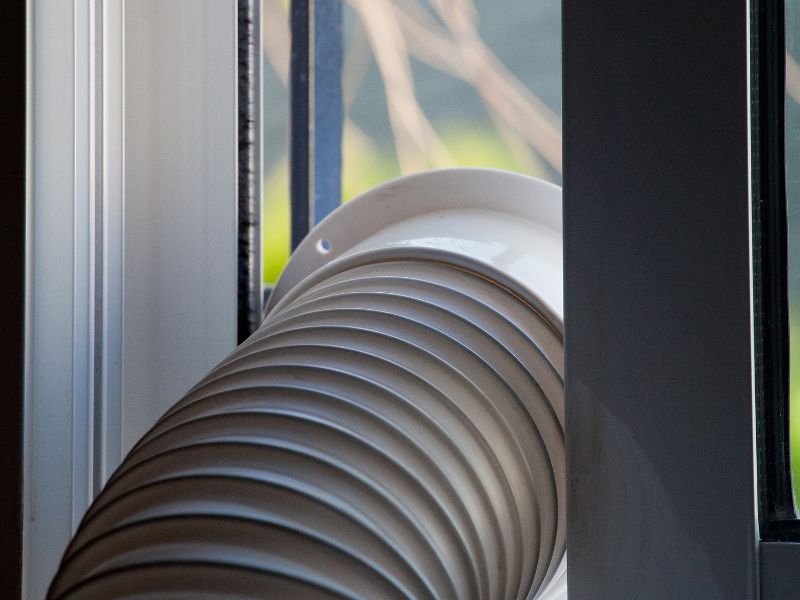

Step 4: Install the Window Slider
Start by placing the window slider plate on the window sill and adjusting it to match your window’s width (for vertical windows) or height (for horizontal windows). Once it fits properly, mark where the two slider pieces overlap using a pencil. Then, secure the slider plates by inserting bolts into the nearest holes where they meet.
Next, apply the adhesive foam seal along the window sill and the side of the window sash. This helps create a tight seal to block out hot air and prevent drafts. After sealing, attach the exhaust hose adaptor to the hole in the window slider and lock it in place.
Now, set the assembled window slider onto the window sill, aligning it with the foam seal. Gently close the window against the slider to hold everything securely in place.
Step 5: Check the Drainage Setup
Take a moment to inspect your portable air conditioner’s drainage system. These units remove moisture from the air as they cool, and that moisture needs somewhere to go. Depending on the model, your AC will either collect water in an internal tank or release it through a drain hose.
If your unit uses a water tank, place the air conditioner in a spot where you can easily access the tank for regular emptying. Some models may automatically shut off when the tank is full, so you should stay on top of this to help maintain performance.
If your AC supports continuous drainage, locate the drain outlet on the back of the unit. Connect the included drain hose, then direct it to a suitable location, such as a floor drain, sink, tub, or bucket.
This option is especially helpful in humid areas where the tank would otherwise fill up quickly. Make sure the hose is positioned lower than the drain outlet to allow water to flow out easily.
Step 6: Seal and Turn It On
To improve insulation and prevent outside air from leaking in, insert the non-adhesive foam seal between the edge of the window and the window frame. This extra layer helps block gaps around the window slider and keeps cool air from escaping. Apply light but steady pressure as you press the foam into place, making sure it fits snugly for an effective seal.
Once you secure the foam and set everything up properly, plug the portable air conditioner directly into a grounded wall outlet. Avoid using extension cords, as they can pose safety risks. After plugging it in, turn on the unit and adjust the settings as needed to start cooling your room efficiently.
Differences in Installation Based on Window Type
Windows come in different styles, and the most common types you will encounter when installing a portable air conditioner are vertical sliding windows and horizontal sliding windows.
Vertical windows open by sliding up and down, while horizontal windows open by sliding side to side. How your window opens will determine how you install the window slider kit that connects the exhaust hose to the outside.
For casement windows, which open outward with a crank, a standard window kit won’t work. You will need to use an alternative solution that allows you to vent the exhaust hose properly through the window opening.
Vertical vs Horizontal Sliding Windows
For vertical sliding windows, you place the installation kit horizontally along the bottom of the window frame. You raise the window, insert the slider panel, then lower the window to hold it in place. Foam seals are typically applied along the bottom and sides to block outside air.
For horizontal sliding windows, position the slider panel vertically along the open side of the window. You slide the window open, install the panel upright, and then slide the window back to secure it. In this setup, you’ll add foam seals to the top and sides of the window frame for insulation.
Most portable air conditioners include a window kit that you can adjust to fit either window type. The key is to match the panel’s orientation with the window style and ensure everything is sealed properly for efficient cooling.
What if My Window Is a Casement Window?
Installing a portable air conditioner in a casement window (the kind that swings open outward like a door) is more challenging, but it is possible with a bit of creativity. Manufacturers design most standard window vent kits for sliding windows, not for casement types.
For a casement window, you can create a custom panel using Plexiglas, plywood, or polyurethane sheets cut to fit the open window space. Cut a hole in the panel for the exhaust hose and secure it tightly with weatherstripping or sealant to block hot air and prevent insects from entering. Then close the window against the panel to hold it in place.
This setup might not seal as tightly as traditional window installations, but with proper sealing, it will still work well.
FAQs
Yes, you can install a portable air conditioner in a room without a window, but you will need another way to vent the hot air outside. Some common alternatives include a sliding door, a drop ceiling, a dryer vent, or even a hole in the wall.
The easiest option is a sliding door. You can purchase a vent kit specifically designed for sliding doors to secure the hose in place and seal off the opening. If you’re in an office or a room with a drop ceiling, you can remove a ceiling tile and place the vent hose through it using a special kit.
Yes, you can install a portable air conditioner with the window screen still in place, and many people do it successfully. Most portable AC units come with an adapter that fits under the window, allowing you to close the window against the piece and seal the opening. The screen does not interfere with this setup and can help keep bugs and debris out of the exhaust hose.
However, leaving the screen on may reduce airflow because the mesh blocks a small portion of the air. This is usually not a major issue, but it is a good idea to clean the screen at least twice a year to maintain proper ventilation.
If your portable air conditioner is not cooling properly after installation, it may be due to inadequate ventilation, incorrect placement, or installation errors. Portable ACs need a clear path to vent hot air outside. If you don’t install the exhaust hose properly or allow too many bends, it will trap the heat in the room.
Placement also plays a big role. Place the unit near a window for easy exhaust, and keep it away from heat sources, such as TVs or lamps, that can affect its performance. Ensure it is placed on a flat surface with sufficient space around it to allow air to flow freely.
Other common issues include problems with the power supply and incorrect settings. Check if the unit is in “Cool” mode, and set the temperature lower than the room temperature. Also, ensure that the power cord and outlet are functioning properly.
You can move your portable air conditioner to another room after installation. These units are designed for flexibility and mobility. Simply unplug the unit, detach the exhaust hose and window kit, and roll it to the new location. Just make sure the new room has a suitable window or vent for the exhaust, and remember to drain the water reservoir before moving the unit.
