How to Install a Sliding Glass Door

Once you’ve chosen the right sliding glass door, it’s time to securely install it. You’ll start by preparing the rough opening and securing the door, and end by adding trim and making final adjustments to ensure smooth operation.

This step-by-step guide will show you how to install a new sliding door. You’ll learn each part of the process, from setup to final adjustments. By the end, you’ll have a stylish, functional sliding door that enhances your home’s look and feel.

Project difficulty: Intermediate Estimated time to complete: 4 to 8 hours Project cost: $630

Supplies

Materials Needed:

• New sliding glass door
• Shims
• Silicone caulk
• Exterior sealant
• Spray foam insulation
• Foam backer rod
• Sill pan material or roll flashing
• Finishing nails

Tools Needed:

• Utility knife
• Pry bar
• Tape measure
• Carpenter’s level
• Screwdriver
• Hammer or nail gun
• Caulk gun
• Oscillating multi-tool
• Gloves
• Safety glasses

Step 1: Remove the Old Door and Trim

Start by removing the frame. Use a utility knife to cut through the caulk where the interior and exterior trim meet the wall. Carefully pry the trim off with a pry bar, taking your time to avoid damaging the wall. Set the trim aside if you plan to reuse it.

Now, remove the old door. Lift each panel straight up to release it from the bottom track, then tilt and pull it out. Have a second person help you, especially if the door is heavy.

Finish by clearing the rough opening. Remove any leftover nails, screws, shims, or caulk. You should now have a clean opening with only the wall studs and header exposed.

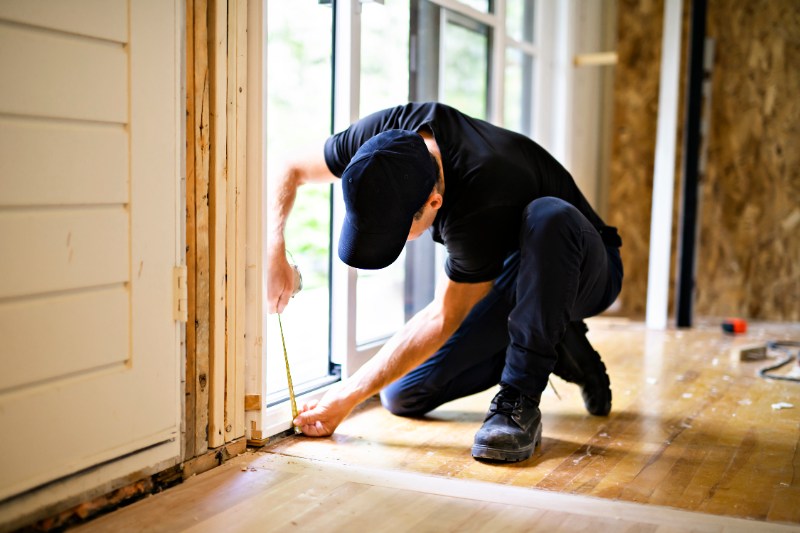

Step 2: Measure the Door Opening

After removing the old door and frame, it’s time to measure the rough opening to make sure your new sliding glass door will fit properly. Use a tape measure to check the width from one wall stud to the other and the height from the bottom of the header down to the subfloor.

Take measurements in three places for accuracy. Measure the width at the opening’s top, middle, and bottom. Then, measure the height on both the left and right sides. If the numbers vary, go with the smallest measurement. This ensures your new door won’t be too large to fit.

Write all your measurements down and keep them handy when choosing a new sliding door. This will help you pick a size that fits securely and operates smoothly. For the easiest installation, consider choosing a pre-hung door, which comes already mounted in a frame and is ready to install.

Planning to add a screen door later? Be sure to check out how to measure for a sliding screen door so you can get the right fit.

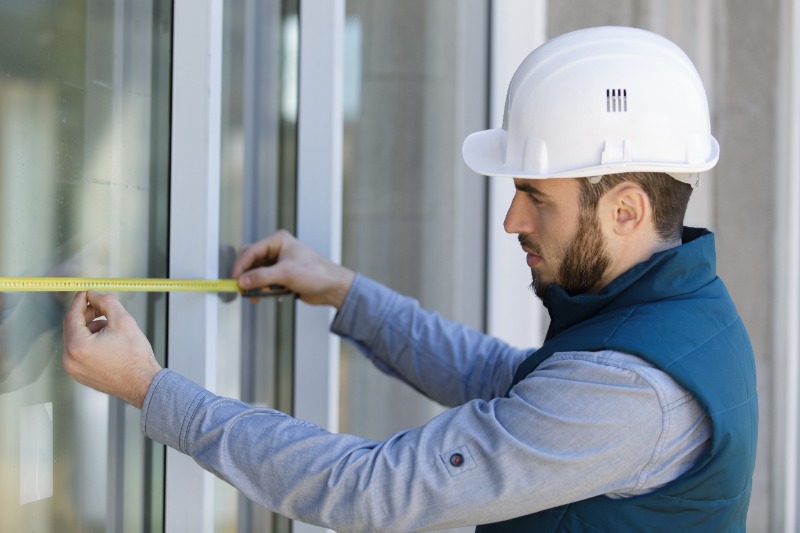

Step 3: Check and Square the Door Opening

Start by using a carpenter’s level to check that the sides of the rough opening are plumb and that the top and bottom are level. This ensures the door will sit evenly in the frame. If any part is off, you’ll need to make adjustments.

Next, check if the opening is square by measuring diagonally from corner to corner. Measure from the top left to the bottom right, then from the top right to the bottom left. You should get the same measurement both times if the frame is square.

If the frame isn’t square or level, use shims to make corrections. Place them behind the framing to adjust the position as needed. Getting this right helps the door fit properly and work smoothly.

For professional advice, I asked John Jimenez, the Director of Communication at Art and Carpentry, about the best way to check if an opening is square. He said, “The diagonal method is my go-to. Measure corner-to-corner both ways — if the numbers match, you’re square.

“I also use a long level or a laser to check plumb and level on all sides. Even a small discrepancy at this stage can cause big issues later with operation and sealing.”

Step 4: Install a Sill Pan and Apply Caulk

To protect your home from water damage, start by creating a sill pan using roll flashing. Cut the flashing to fit the width of the door opening. This sill pan helps catch and drain water that might get behind the door.

Apply a bead of caulk along the bottom edge of the opening, then press the flashing firmly into place so it seals well. Next, run a line of silicone caulk around the sides and bottom where the house wrap meets the siding.

This adds another layer of protection and helps keep moisture out. Before installing the door, smooth the caulk and apply it continuously to seal all gaps.

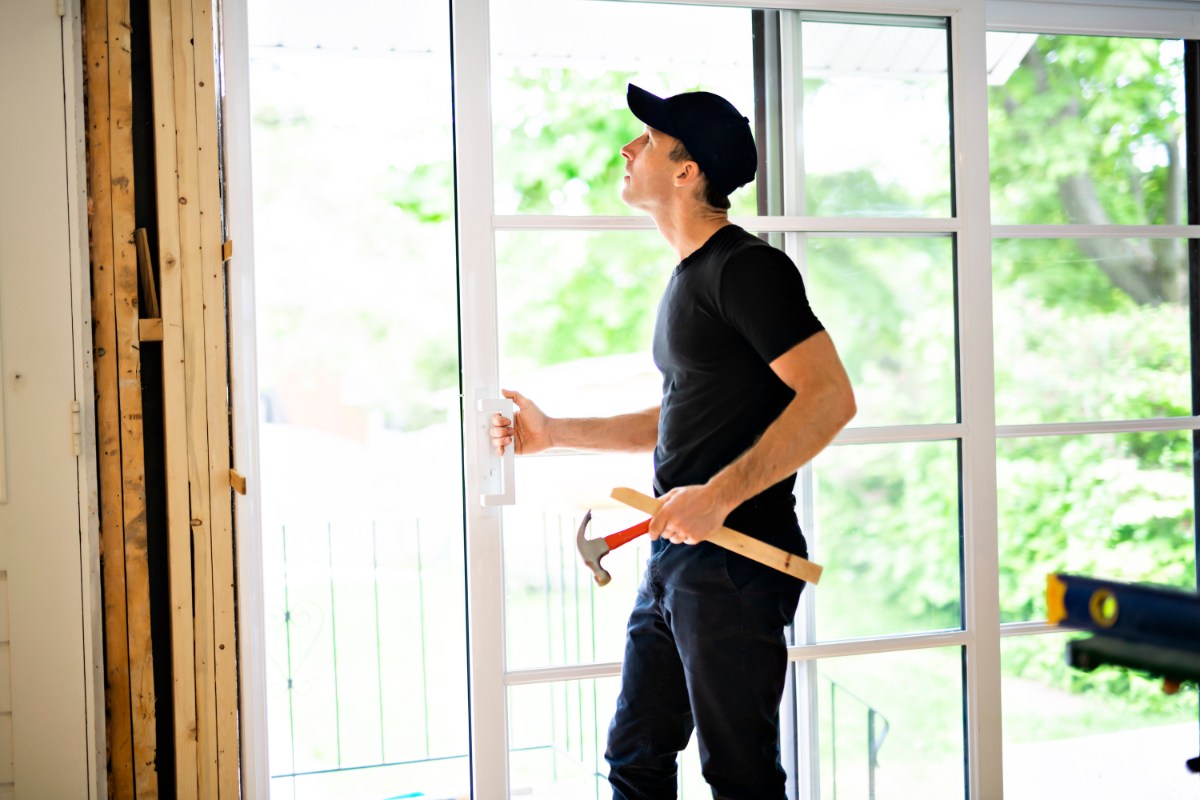

Step 5: Set the Door in Place and Secure It

Begin outside by tilting the door into the rough opening, starting with the bottom edge first. Carefully guide it into position and use shims under the sill and around the frame to keep it steady and level.

Place shims every 12 inches along the sides and top of the frame. Check that the brick mold, which is a trim piece around the outside of the door, sits flat against the wall. Once it’s even, drive in nails or trim screws to secure it and position the fasteners slightly below the surface.

Go inside and secure the door frame by nailing through the shims into the surrounding framing. Trim any excess shims with a utility knife, so they’re flush with the frame. This gives the door a clean, professional look and helps keep it firmly in place.

Step 6: Insulate the Frame and Add the Trim

Start by sealing the gaps around the outside of the door. Push foam backer rods into the spaces between the frame and the wall. These let the frame move slightly with changes in the weather. Then, apply exterior sealant around the edges and wipe off any extra.

Inside, spray low-expansion foam between the door frame and the rough opening. Use just enough to fill the gap without forcing the frame out of place. After it dries, check that the door still opens and closes properly. If it doesn’t, cut away the foam, adjust the shims, and try again.

Finish by putting the trim back on. Start outside, then move to the inside. If any shims stick out, trim them with a utility knife so the trim fits flat against the wall.

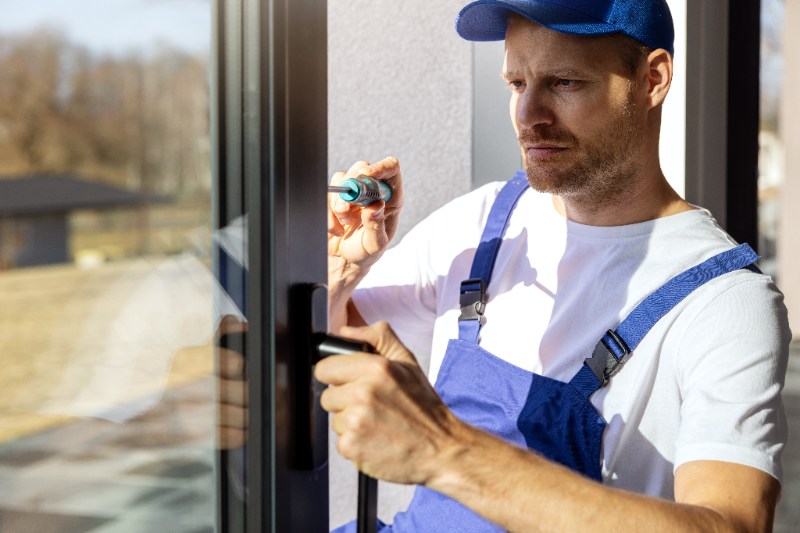

Step 7: Install the Hardware and Fine-Tune the Door

Finish your sliding door installation by attaching the handles and locks. These usually come with your door, along with the necessary screws and parts. Follow the manufacturer’s instructions closely to make sure everything lines up and works properly.

Once installed, open and close the door a few times to test its movement. If the door feels loose or shifts on the track, adjust the rollers using a screwdriver until the door glides smoothly and fits snugly in place.

If you made changes to the door height, check the alignment of the latch and lock. You may need to reposition them slightly to ensure they engage correctly when the door is closed.

If the door still doesn’t glide smoothly or doesn’t align with the lock, you can follow our step-by-step guide on How to Adjust a Sliding Glass Door for more in-depth help.

Common Mistakes to Avoid

Installing a sliding glass door can improve your home’s style, lighting, and access to the outdoors. However, to make sure it works properly and lasts a long time, it’s important to avoid some common installation mistakes.

I asked John if he considered this a beginner-friendly project. In his opinion, it’s not. He said, “In all honesty, I wouldn’t call it a beginner DIY project.”

He added, “Even if someone is handy, installing a sliding glass door usually takes at least two people, mainly for handling the weight and ensuring everything stays square and level during installation. Doing it solo is tough and can lead to mistakes that are hard to fix after the fact.”

Skipping Accurate Measurements

One of the most common and expensive mistakes when installing a sliding glass door is taking incorrect measurements. Even a small error can lead to a door that doesn’t fit right, causing gaps, drafts, and security issues. This can affect your home’s comfort and may result in extra costs for adjustments or replacements.

To avoid this, always measure the width and height of the door opening in several places. For width, check the top, middle, and bottom. For height, check the left, center, and right. Use the smallest measurement to ensure the door fits properly.

If you’re unsure how to measure correctly, it’s best to contact a professional. They have the right tools and experience to make sure everything is accurate.

Improper Track Installation

Improper track installation is a common mistake when putting in a sliding glass door. If the track isn’t level or secured correctly, the door can stick, wobble, or even come off the track. This can make the door hard to use and unsafe.

To prevent this, use a level to make sure the track is straight. Attach it firmly to the floor, but don’t overtighten the screws, or you might bend the track. Make sure the track is clean before installing the door.

If you notice the track is damaged, remove and replace it to avoid future problems. A well-installed track helps the door slide smoothly and safely.

Ignoring Level and Alignment

Another common mistake is not checking if the frame and tracks are level and straight. If you don’t align the door properly, it can be hard to slide, it may not lock correctly, or it could come off the track.

To avoid this, use a level to make sure the frame is straight both across and up and down. Check that the top and bottom tracks line up so the door can move smoothly. Take your time with this step to prevent future problems.

Pro tip: “Take your time on the base. If the sill isn’t perfectly level, the rest won’t be either. Use shims and double-check as you go. Don’t fully tighten any screws until everything’s aligned. And don’t skip flashing or sealing — you want a clean install that also keeps water out.” – John Jimenez

Neglecting Weatherproofing

Skipping weatherproofing is a common mistake that can lead to drafts, water leaks, and damage to your home. Sliding glass doors create a large opening, so proper sealing is important to keep out moisture, air, and dirt.

To avoid this, make sure to add a moisture barrier around the rough opening before installing the door frame. After you set the door in place, use exterior-grade caulk to seal all gaps between the frame and the wall.

You can also add weatherstripping as recommended by the manufacturer. These steps help protect your home from the elements and keep the door working properly.

Using Cheap Materials or Old Hardware

Trying to save money by using cheap materials or reusing old hardware is a mistake that can lead to more problems later. Low-quality doors can warp, wear out quickly, or get damaged easily. Reusing old rollers, tracks, or handles might also cause the door to stick, slide poorly, or break down over time.

To avoid these issues, choose high-quality materials and hardware that match your door model. New parts may cost more upfront, but they will help your door last longer and work better.

If you’re not sure which parts to use, a trusted sliding door service can recommend the right options and even install them for you. Investing in quality now can save you from expensive repairs or replacements in the future.
