If you plan to install a chain-link fence yourself, it’s important to familiarize yourself with its different parts. Several key components make up a chain-link fence, including the mesh fabric, fence posts, tension bars, top rails, tension wire, and gate hardware.
Chain-link fences also use accessories like fence ties, wire clips, and post and rail cups to hold everything together during installation.
Before you grab your tools or gear up for your DIY chain-link fence project, take some time to understand the different parts that make up the fence. Knowing the fence’s anatomy will help your installation go more smoothly.
Know Your Chain-Link Fence Parts
I asked Konstantin of Arctic Handyman Services why it’s important to understand the different parts of a chain-link fence before attempting a DIY installation. He explained that it’s crucial because each part plays a specific role in the fence’s structure and overall function.
He added, “Familiarity with these parts ensures that the installation is done correctly, leading to a sturdy, secure, and long-lasting fence.
“Without this understanding, individuals may overlook critical steps or assemble parts incorrectly, potentially compromising the integrity and lifespan of the fence.”
Chain-Link Fence Mesh
The chain-link mesh, also called fence fabric, is the main part of a chain-link fence. Manufacturers make it from steel wires woven into a diamond pattern. This mesh stretches between the fence posts, providing both security and visibility.
You can get chain-link mesh in different heights, wire thicknesses (called gauges), and coatings. Galvanized mesh resists rust, while vinyl-coated mesh comes in colors like green or black to blend in better with the surroundings. Thicker wire and smaller openings make the fence stronger and harder to cut or climb.
Overall, the mesh is the key part of a chain-link fence that keeps things secure while still letting you see through.
Fence Posts
Fence posts are the upright parts of a chain-link fence that keep it standing and secure. They support the mesh and help the fence stay straight and strong.
There are two main types of fence posts:
- Terminal Posts: Installers place these at key points such as the ends of the fence, corners, and on both sides of gate openings. Terminal posts include end posts, corner posts, and gate posts. They are thicker and set deeper in concrete because they carry the tension of the mesh and support gates and changes in direction.
- Line Posts: These posts go between the terminal posts along the straight sections of the fence. They are usually spaced 8 to 10 feet apart and help hold the mesh in place, keeping the fence aligned.
Fence posts are typically made of galvanized steel to resist rust, and some have colored coatings like green or black to match the surroundings. Together, terminal and line posts form the strong frame that supports the entire fence.

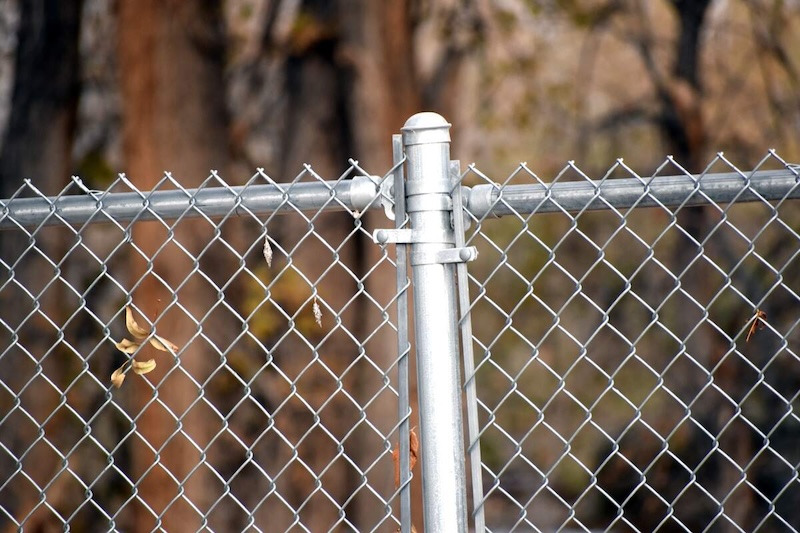

Tension Bar
A tension bar is a long, narrow metal rod that helps hold the chain-link mesh tightly in place. You insert it through the end of the mesh, sliding it through the last row of diamond-shaped openings.
Once in place, installers secure the tension bar to a terminal post using tension bands. This setup pulls the mesh tight and spreads the tension evenly, helping the fabric stay straight, flat, and secure.
Without a tension bar, the mesh could sag or loosen over time. It plays an important role in giving your chain-link fence a strong, professional-looking finish.
Konstantin emphasized the importance of the tension bar in stretching and securing the chain-link fabric tightly to the terminal posts.
He explained, “By weaving through the mesh and attaching to the tension bands, the tension bar allows for uniform tension across the entire fence, preventing sagging and maintaining its structural stability and security.”
Tension Bands
Tension bands are metal straps used to secure the chain-link mesh to the terminal posts. They wrap around the posts and are fastened with carriage bolts to hold the tension bar in place.
The tension bar slides through the end of the mesh, and the tension bands clamp it tightly to the post. This setup keeps the fabric stretched, flat, and properly aligned.
Installers space the tension bands evenly along the height of the post and tighten them to prevent the mesh from sagging or coming loose. They work hand in hand with tension bars to keep your fence strong and secure.
Brace Bands
Brace bands are metal bands that wrap around terminal posts such as end posts, corner posts, and gate posts. Installers use them to attach other parts of the fence, like the top rail.
By holding the top rail firmly in place, brace bands help keep the fence stable. They also prevent the posts from shifting or leaning over time. Though small, brace bands play a big role in keeping your chain-link fence strong and secure.
Rail Cups
Installers use rail cups to attach the top rail, mid-rails, and bottom rails to the terminal posts in a chain-link fence system.
They fit at the ends of the rails and hold them firmly in place. This helps keep the rails aligned and prevents them from shifting or coming loose. By securing the fence framework, rail cups help maintain the fence’s strength and stability.
Post Cups
Post caps protect each fence post from moisture, dirt, and other environmental damage by covering the top. Covering the open ends of the posts helps prevent rust, corrosion, and buildup inside the posts.
Post caps also give the fence a clean, finished appearance. While they may seem like a small detail, they play an important role in both the look and durability of your chain-link fence.

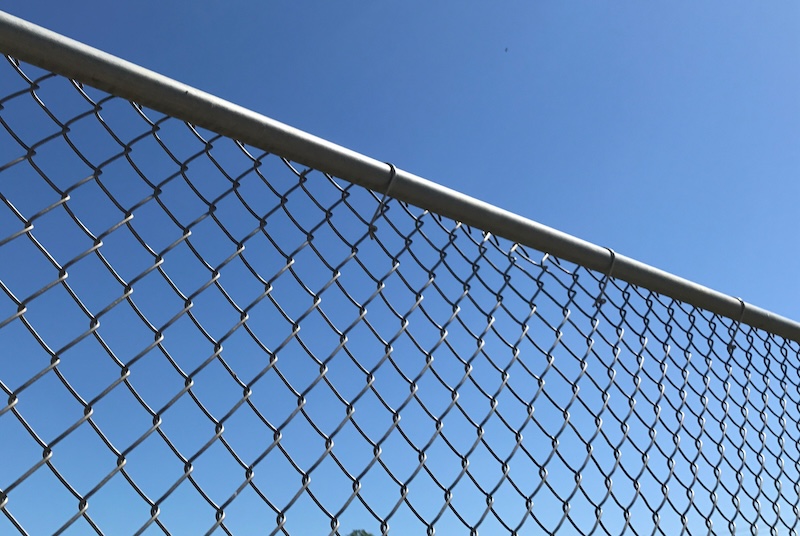

Top Rails
Top rails are horizontal tubes that run along the top of a chain-link fence, connecting terminal posts and passing through line post caps.
They provide support for the chain-link mesh, helping keep it straight and stretched evenly across the fence. Top rails also prevent the mesh from sagging over time.
Made from strong materials like galvanized steel, top rails add stability to the entire fence and help it maintain its shape for years.
According to Konstantin, top rails are the horizontal bars that run along the top of a chain-link fence and play a key role in providing structural support.
He added, “They help to maintain the fence’s shape and prevent it from leaning or collapsing. Additionally, top rails contribute to the overall rigidity and stability of the entire chain-link system.”
Tension Wire
Tension wire runs along the bottom of a chain-link fence and helps keep the mesh pulled tight and close to the ground. It adds support so the fence doesn’t sag or get pushed out of shape.
Installers secure the wire with brace bands after stretching it between terminal posts. The mesh is then tied to the wire using fence ties or hog rings to keep it in position.
This wire is a budget-friendly way to reinforce the fence, especially in areas where animals might try to crawl under or where the ground is loose or uneven.

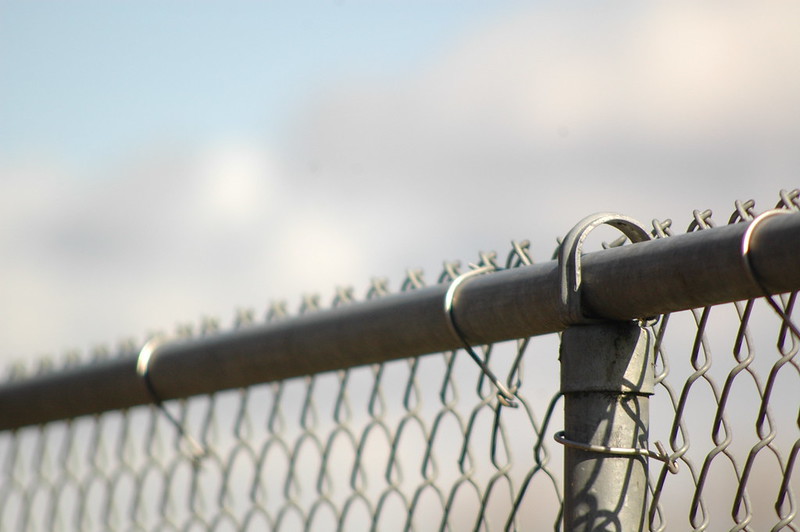

Offset Loop Post Tops
Installers place offset loop post tops, also called offset loop caps, on top of line posts in a chain-link fence. They hold the top rail in place and help guide the chain-link mesh along the fence.
These caps have a loop that the top rail slides through. The offset design pushes the rail slightly toward the side where the mesh will be stretched. This helps keep the mesh from touching the posts and makes the fence look neater.
Loop caps fit loosely on the posts. Once installers place the rail and mesh, the weight and tension keep everything secure.
Gate Hardware
A chain-link fence gate needs several key parts to work properly and stay secure. Each piece of gate hardware plays an important role in how the gate opens, closes, and locks in place. Here’s a quick look at the main components.
- Gate frame – The gate frame holds the gate mesh and provides the foundation for the gate to swing open and closed. It’s constructed from steel tubing and attached to the gate posts with hinges.
- Gate hinges – Gate hinges are used to attach the gate frame to the posts. They allow the gate to swing open and closed smoothly while providing a secure attachment to the fence posts.
- Gate latch – The gate latch secures the gate when it’s closed. It provides a locking mechanism that keeps the gate from swinging open unintentionally, ensuring the fence remains secure.
Installation Accessories
To keep a chain-link fence stable and secure, a few small but important accessories are used during installation. These help attach the mesh to the frame and keep everything in place. Here are the main ones to know.
- Fence ties – These are used to attach the chain-link mesh to the posts and rails. They are typically made of wire and wrapped around the mesh and posts or rails to hold the mesh in place.
- Wire clips – Wire clips are used to fasten the chain-link mesh to the tension wire. They loop around the mesh and the wire, securing the mesh tightly to prevent sagging or shifting.
