The most cost-effective and efficient way to secure your yard is with a chain-link fence, which provides clear views while keeping your property protected. To install a chain link fence, you’ll start by preparing the area and marking the fence layout.
Then you’ll dig post holes, set the terminal and line posts, attach the necessary hardware, install the rails and tension bars, stretch and secure the fence mesh, and finish by installing the gate.
If you are ready to take on a DIY project, this article will guide you through the steps to install a chain link fence.
| Project difficulty: Expert to advanced Estimated time to complete: 2 to 3 days Project cost: $765 |
Before You Begin
Installing a chain-link fence is technically possible as a DIY project, but according to Nicholas “Nick” DiLeo, the owner of DiLeo’s Carpentry LLC, it’s not the best choice for complete beginners. He explained, “Proper fence installation requires attention to detail, accurate measurements, correct tool usage, and some physical strength and endurance.
“Without some construction experience or solid DIY skills, common errors like misaligned posts, uneven tension, or unstable footings can quickly occur, leading to costly corrections.”
However, if you’re confident in your skills, the preparation stage for this project is quite detailed. You’ll need to plan carefully and get everything ready before you begin. First, you’ll want to familiarize yourself with the parts of a chain-link fence and how they fit together.
Once you have a handle on that, it’s time to make sure you’re working safely and legally. Here’s what you need to do:
Check and Obtain Any Necessary Permits
Before installing a chain link fence, you should check with your local building department to see if a permit is required. Many areas have zoning laws or deed restrictions that regulate things like the type of fence you can build, its height, and how close it can be to the property line.
If you skip this step and install a fence that does not follow local regulations, you could face fines or be required to take the fence down.
Find and Define your Property Line
Knowing exactly where your property lines are is crucial before installing a chain link fence. This ensures you don’t accidentally build on your neighbor’s land, which can lead to disputes or legal issues.
To find your property boundaries, you can start by checking with your local assessor’s office, which often keeps official maps and records. If that does not give you a clear answer, you can hire a licensed land surveyor to mark the exact lines for you.
Some homeowners also refer to a line plot map, which may be available through a realtor or part of your home’s purchase documents.
Locate the Utility Lines
Before you start digging post holes, make sure there are no underground utility lines in the area.
Accidentally hitting a gas, water, or electrical line can be dangerous and costly. To avoid this, call 811 before you dig.
This is a free national service that will contact your local utility companies. Within a few days, they will send someone to your property to mark the locations of any underground utility lines with paint or flags, so you know where it’s safe to dig.
Check with the Neighbors
Before installing a fence, remember that local building codes aren’t the only rules you need to follow. Many neighborhood or homeowners associations have their own guidelines about fence height, design, color, and material.
These rules can be stricter than city or county regulations. To avoid fines or being asked to remove your fence, check with your neighborhood association or ask neighbors who have recently installed a fence about any specific requirements. It’s always better to be safe than sorry.
Select the Chain Material and Height
Decide on the height and material of your fence before making any purchases. Most retailers sell chain link fencing in rolls that are 4 to 6 feet tall, so choose a height that fits your needs. This could be for privacy, security, or simply marking property lines.
Manufacturers usually make chain link mesh from either lightweight aluminum, which is easy to work with and resists rust, or heavy-duty galvanized steel, which offers greater strength and long-term durability.
Mark the Fence Layout
Laying out your fence is an essential first step in the installation process. It allows you to plan exactly where your fence will go, including the locations of corners, gates, and line posts. A proper layout ensures the fence follows your property lines, avoids obstacles like trees or utility lines, and maintains even spacing between posts.
It also gives you a clear visual of how the finished fence will look and function. Taking the time to mark everything accurately will help you build a straight, sturdy fence and avoid costly mistakes down the line.
Supplies Needed:
Materials:
- Mason’s line (or string line)
- Batter boards
- Spray paint (for marking post locations)
Tools:
- Measuring tape
- Hammer or mallet (for driving stakes or batter boards)
- Pencil and notepad (for taking down measurements)
Step 1: Mark the Fence Line
Begin by identifying the exact location of your property lines, especially where your yard meets your neighbor’s. Once you know where the boundary is, measure about 4 inches inside that line and mark where your fence will go. This small setback helps keep your fence posts and concrete footings safely within your property and avoids any future disputes with neighbors.
Keep in mind that some areas have specific rules about how far a fence must be from the property line, so you should check with your local building department before marking anything. After marking the fence line, clear the area along its full length. This makes room for tools, materials, and easy movement during installation.
Step 2: Set Up Layout Lines and Square the Corners
To mark your fence layout, set up batter boards just outside each corner of the planned fence line and stretch a mason’s line between them to outline the perimeter. If space is tight, such as near the house, you can use stakes instead of batter boards.
To make sure your fence corners form accurate right angles, use the 3-4-5 method, a simple technique based on the Pythagorean theorem. Begin by measuring 3 feet along one string from the corner where the two lines meet. Then measure 4 feet along the string that runs perpendicular to it. Next, measure the diagonal distance between those two points.
If the diagonal measures exactly 5 feet, your corner is square. If it does not, adjust the string lines until the measurement is correct. This method is a quick and reliable way to ensure your fence layout has clean, straight lines and properly squared corners.
Step 3: Mark the Locations for Fence Posts
Start by determining the positions for your terminal posts, which include the end, corner, or gate posts. For safety, use spray paint to mark the spot for each post, as this avoids the tripping hazards that can come with using stakes.
Make sure you space the posts according to the size of the fence panels you plan to install, typically no more than 10 feet apart.
When marking the location for your chain-link fence gate, be sure to leave an extra 3 ¾ inches of space between the gate posts. You need this additional space to accommodate the latch and hinge hardware, which lets the gate open and close smoothly.

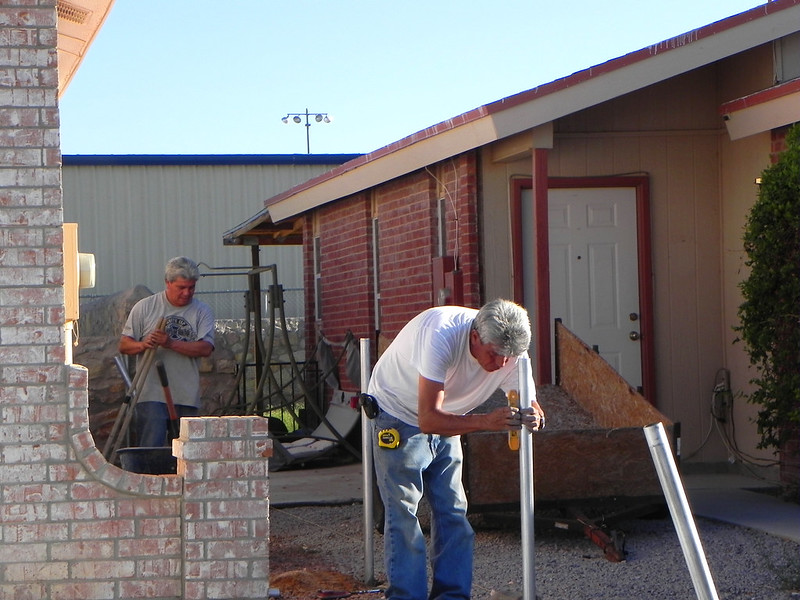

Install Fence Posts
Before you can build your chain-link fence, you need to install the fence posts properly. This includes digging the holes, filling them with gravel and concrete, and setting both terminal and line posts in place. Installing the posts carefully ensures your fence will be sturdy, straight, and built to last.
| Note: Chain-link fence posts come in two standard sizes. Corner and end posts use the thicker 2 3/8-inch diameter for added strength and support, while the thinner 1 5/8-inch posts are used for line posts between them. |
One key part of building a chain-link fence is digging the post holes properly. You can use a post-hole digger or a two-person auger to get the right depth and spacing.
Supplies Needed:
Materials
- Chain-link fence posts:
- 2 ⅜ -inch diameter for corner, end, and gate posts
- 1 ⅝-inch diameter for line posts
- Gravel (for post hole base, 4 inches per hole)
- Concrete mix (regular or fast-setting)
- Mason’s line or string (for aligning post height)
Tools
- Measuring tape
- Post-hole digger or two-person auger
- Hand tamper or 4×4 post (for tamping gravel)
- Shovel (for filling holes with concrete)
- Post level
- Marker (for marking ground level on posts)
Step 1: Dig Post Holes
Start by digging each post hole about three times wider than the post. This extra space allows room for gravel and concrete to keep the post stable. For corner, end, and gate posts, make the holes 6 to 8 inches wide. For line posts, dig them 4 to 6 inches wide.
The depth of each hole should be about one-third the total length of the post. Add another 4 inches at the bottom for gravel. This gravel layer improves drainage and gives the post a firm base to rest, helping to keep your fence strong and level.
Step 2: Fill the Post Holes
Pour 4 inches of gravel into the bottom of each post hole to provide a stable base and improve drainage. Use a hand tamper or the end of a 4×4 post to firmly pack the gravel. Tamping is important because it prevents the post from shifting and helps keep water from collecting at the bottom.
After tamping the gravel, pour about 6 inches of concrete on top in the holes for the corner, end, and gate posts. These posts require extra support since they bear the most pressure from the fence. Do not add concrete to the line post holes yet. Leaving them empty allows you to install the line posts later and adjust them to keep the fence straight.
Step 3: Set Fence Post Height
Before placing your posts into the holes, mark the ground level on each one to help set them at the correct height. Begin with the terminal posts, which include the end, corner, and gate posts. These should be as tall as the chain-link mesh plus two inches.
Then move on to the line posts, which should be set two inches shorter than the mesh height. To make sure all line posts stay even, stretch a string between the terminal posts at the desired height for the line posts. This guide helps when installing a fence on sloped or uneven ground.
Step 4: Set Terminal Posts
You should set the end, corner, and gate posts in concrete to build a strong chain-link fence. These posts need to be secure, and the concrete must fully harden before you continue.
Mix the concrete until it has a thick texture. Avoid making it too watery. Follow the instructions on the bag or use ready-to-pour concrete if you prefer.
Place each post into the wet concrete and use a level to make sure it stands straight. You can ask someone to hold it to keep it in position.
Keep adding concrete around the post a little at a time. After every few shovels of concrete, check that the post is still plumb and adjust if necessary. Once you fill the hole, shape the top of the concrete to slope slightly away from the post. This helps rainwater drain off and prevents damage.
Step 5: Set Line Posts
After you securely set your terminal posts in concrete, you can begin installing the line posts in the holes you prepared earlier. Since these posts don’t carry as much weight, they can be set using either compacted gravel or fast-setting concrete.
Place each line post into its hole and use a level to make sure it stands perfectly straight. It’s a good idea to have a helper hold the post steady while you work.
If you are using fast-setting concrete, pour the dry mix into the hole around the post. Then, add the required amount of water directly on top and allow it to soak in.
Check that the post remains plumb as the concrete sets. Allow it to cure for at least two to three days, or follow the drying time recommended by the manufacturer, before continuing with the fence installation.
Install the Post Hardware and Fence Rail
To start, tension bands securely hold the chain-link mesh to the corner, gate, and end posts. As a rule of thumb, use one fewer tension band than the height of your fence in feet. For example, a 6-foot fence will need five tension bands per post.
Supplies Needed:
Materials
- Tension bands
- Brace bands
- Rail cups
- Post caps
- Offset loop post tops
- Top rails
- Tension wire
Tools
- Wrench or socket set
- Hacksaw
- Pliers
- Work gloves

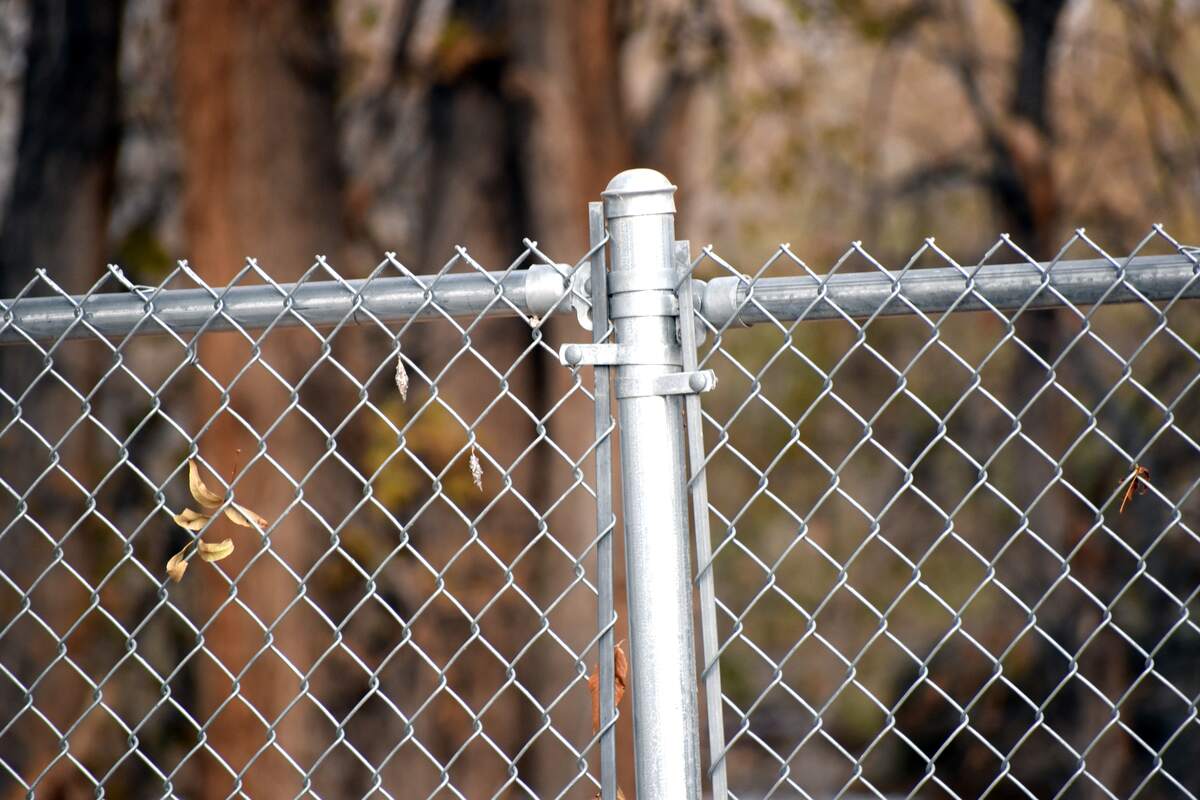

Step 1: Attach Tension Bands, Brace Bands, and Post Cap
At each terminal post, begin by sliding a brace band near the bottom of the post. Next, slide on the required number of tension bands, making sure the flat side of each band faces outward.
After that, slide on another brace band near the top of the post and attach a rail cup to it. The rail cup will hold the top rail securely. Finish by placing the post cap on top of the post.
For corner posts, install hardware for both fence directions by using two sets of end brace bands, tension bands, and rail cups. Begin by sliding on the hardware for one side of the fence, then add the second set for the other side.
At the top of the post, stack the rail cups vertically, one on top of the other, with each cup facing a different direction. This allows both top rails to fit properly without interfering with each other.
Step 2: Install the Rails
Start by attaching the offset loop tops to each line post, with the loop facing outward, away from the fence. Slide the top rail through the loop and into the rail end cup on the terminal post. Tighten the bolt on the rail end cup to hold the rail in place.
Keep connecting the rest of the top rails by sliding each one over the narrow end of the previous rail. When you reach the end of the fence line, measure the space for the last section of top rail and mark it. Cut the final piece to fit using a hacksaw. Once it fits properly, secure it by tightening the end cap.
Then add the tension wire along the bottom of the fence. This wire helps keep the chain-link mesh tight and prevents animals or debris from pushing under the fence. Run the tension wire along the same side of the fence where you will hang the chain-link mesh.
Make sure the wire sits about two inches above the ground. Secure the wire to each terminal post, straight and snug across the fence line.

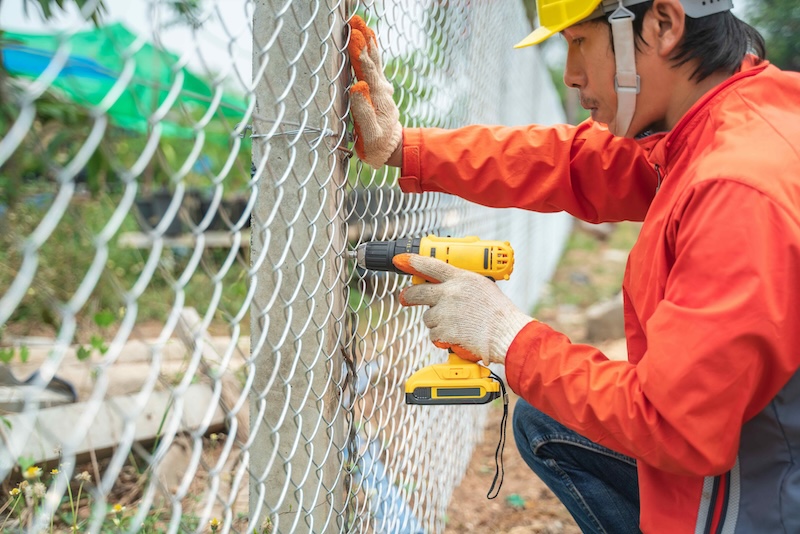

Install the Fence Mesh
This part of the project becomes easier and more manageable if someone helps you. Handling the heavy and bulky fence mesh can be tricky on your own, especially when aligning and securing it properly. Having a second person can make unrolling, lifting, and attaching the mesh to the posts much smoother and faster.
Supplies Needed:
Materials
- Chain-link fence mesh
- Fence ties
- Wire clips
- Temporary tension band
Tools
- Come-along (hand winch)
- Stretcher bar
- Pliers
- Socket wrench or adjustable wrench
- Wire cutters
- Work gloves
Step 1: Secure the Fence Mesh to the Post
Start by unrolling the chain-link mesh and laying it flat on the ground along the outside of your fence line, close to the posts. Make sure you position the mesh so it will easily lift into place.
Take a tension bar and thread it vertically through the very first row of chain-link diamonds. This bar helps reinforce the edge of the mesh and gives it a firm, straight edge for attachment.
Once you place the tension bar, set it up against the terminal post. Use the pre-installed tension bands and insert carriage bolts to fasten the bar securely to the post. Tighten the bolts so you firmly attach the mesh, and it won’t shift during the rest of the installation.
Step 2: Position and Adjust the Fence Mesh
Next, lift the chain-link mesh upright and position it against the fence posts, making sure it lines up properly along the fence line. Pull the mesh tight to remove any loose or sagging areas. To keep it steady while you work, use a few wire ties to loosely secure the top of the mesh to the top rail.
If you find that the mesh is too long for the section you’re covering, you don’t need to cut it. Instead, locate one of the vertical wires at the point where you want to shorten the mesh. Use pliers to untwist and remove the wire, which will separate the unwanted portion of the mesh cleanly without damaging the rest of the mesh.
Step 3: Stretch and Tighten the Fence Mesh
To secure the other end of the chain-link mesh, start by inserting a tension bar through the diamonds about three feet from the mesh’s loose end. This will give you enough space to stretch the mesh without overloading the edge.
Next, attach a temporary tension band to the terminal post and hook a come-along (a hand-operated winch) to it. Then connect a stretcher bar to the tension bar you just inserted and attach the come-along to the stretcher bar.
Begin tightening the come-along slowly. As it pulls, the mesh will stretch along the fence line. Keep tightening until you make the chain-link mesh firm, but not overly tight. You should be able to squeeze the diamonds slightly with your fingers, but they shouldn’t sag or feel loose.
The Hardest Part: Properly Tensioning the Mesh
Nick points out that this step is the most difficult part of the project. Why? He explained, “The most challenging aspect is properly stretching and tensioning the chain-link mesh. This requires specialized tools, such as tension bars, fence pullers, and come-alongs, and considerable experience to achieve correct tension.
“Under-tensioning causes sagging and reduces the fence’s lifespan, while over-tensioning can warp posts or damage the mesh. Ensuring that terminal posts are set correctly and perfectly aligned before tensioning is equally crucial and challenging.”
Step 4: Secure the Mesh to the Terminal Post
Once you properly stretch the mesh, remove any extra mesh that extends past the terminal post. Pull the remaining mesh tightly to the post, then slide a tension bar through the end of the mesh and align it with the tension bands on the post.
Secure it in place by tightening the bolts on the tension bands. After you firmly attach everything, remove the come-along, stretcher bar, and the temporary tension band.
Step 5: Secure the Mesh to Posts, Top Rail, and Bottom Wire
As you continue along the fence line, start securing the chain-link mesh to each line post. Use fence ties and space them about 12 inches apart. These ties hold the mesh tightly against the posts.
Then, move to the top rail. Attach the mesh using more fence ties, placing one every 24 inches along the rail. This keeps the top of the mesh straight and secure.
For the bottom of the fence, use wire clips to fasten the mesh to the tension wire. Space the clips evenly to keep the mesh close to the ground.
Move On to the Next Fence Section
Once you’ve secured the mesh to the posts, top rail, and tension wire, you’re ready to begin the next section of the fence. Repeat the same steps for each new stretch until you finish the entire fence line.
Install the Gate
Supplies Needed:
Materials
- Gate frame
- Gate hinges
- Carriage bolts and nuts
- Gate latch
Tools
- Socket wrench or adjustable wrench
- Measuring tape
- Marker or pencil
Step 1: Attaching the Gate Hinges
Start by securing the gate hinges to the gate post. Position the top hinge about 8 inches from the top of the post and the bottom hinge about 8 inches from the ground.
Use carriage bolts to fasten them tightly. Make sure the top hinge pin faces downward and the bottom hinge pin faces upward.
Next, loosely attach the frame hinges to the gate itself. Don’t tighten them yet, as you will need to make adjustments once you place the gate. Support the gate with a 2×4 board or wooden block to keep it elevated to the correct height while you work.
With the gate resting on the support, align the bottom frame hinge with the bottom post hinge and tighten it. Then do the same with the top hinge. Double-check that you level and properly align the gate before fully tightening all bolts.
Step 2: Install the Gate Latch
To install the latch, hold it at a comfortable height on the gate, usually around waist level. Make sure it lines up correctly with the latch post or catch. Once in position, secure it using the appropriate bolts or screws.
Finally, test the gate by swinging it open and closed. It should move freely without dragging on the ground or catching on the post. If it doesn’t swing smoothly, loosen the bolts slightly and adjust the hinge positions until the gate operates correctly.
As you move forward with your fence project, you might encounter the need to address issues such as damage or wear over time.
Common Challenges and Solutions
Installing a chain link fence can be a rewarding DIY project, but it comes with several challenges. Problems can affect the fence’s appearance and strength, sometimes causing delays or extra work.
By learning about these common issues ahead of time and knowing how to fix them, you can avoid frustration and build a fence that’s both sturdy and attractive.
Misaligned Posts
If your posts aren’t lined up straight or set at the same height, the entire fence can look crooked, and it will be harder to stretch the mesh properly.
To avoid this, start by marking a straight line for the posts using a string or a rope. This will act as a guide to ensure the posts follow a straight path.
When digging the post holes, use a level to check that each post is standing vertically, both front-to-back and side-to-side.
It’s also important to make sure all the posts are the same height. Use a measuring tape to check each one before securing it in place.
Difficulty Stretching the Chain Link Mesh
One of the trickiest parts of installing a chain link fence is getting the mesh tight and even. If it isn’t stretched properly, the mesh can sag, wrinkle, or appear loose, which makes the fence look unprofessional and can affect its strength.
To avoid this, use a fence puller or a come-along tool, along with a tension bar. First, insert the tension bar vertically through the end of the chain link mesh.
Then attach the bar to the puller, and slowly stretch the mesh toward the opposite terminal post. Apply steady, even pressure until you make the mesh tight but not over-stretched.
Installing on Uneven or Sloped Ground
Building a chain link fence on sloped or uneven ground can be tricky. If not done properly, it can result in large gaps at the bottom of the fence or an uneven, wavy top line. For steeper slopes, the step method works best.
This involves installing each section of fence in a horizontal line, creating a stair-step appearance that follows the slope.
For more gradual slopes, you can use the racking method, where the chain link mesh is stretched at an angle to match the ground’s contour.
In both cases, it is important to keep each post perfectly vertical and make adjustments to the mesh so it stays tight and follows the slope without sagging. Taking the time to plan for the terrain ensures that you make the finished fence both secure and visually appealing.
Setting Posts in Weak Soil
Setting fence posts in loose or sandy soil can be a real challenge, as the posts may wobble, lean, or even shift over time. This weak foundation can lead to a fence that’s unstable and less durable. To prevent this, it is important to dig deeper post holes to give each post a more secure anchor.
Adding a few inches of gravel at the bottom of the hole will help with drainage and reduce the risk of water collecting and weakening the base. Once you place the post, pour concrete around it to lock it in firmly. Allow the concrete to fully cure before attaching any fencing.
Nick also highlights the added complexity of installing a chain-link fence in weak or loose soil. He said, “Installing fences in weak or loose soil significantly increases difficulty. Posts in unstable soil require deeper holes, wider footings, and reinforced anchoring techniques like concrete or compacted gravel bases.
“Posts can easily shift during installation and settlement, especially under the weight and tension of the mesh, resulting in an unstable fence structure. Proper soil preparation and anchoring become essential, making the process slower, more labor-intensive, and technically demanding.”
FAQs
Yes, it is possible to install a chain-link fence by yourself as long as you are prepared for a physically demanding project and have the right tools on hand. Tasks like digging the post holes, setting the posts in concrete, and attaching the hardware can be done without help.
The most difficult part to handle alone is stretching the chain-link mesh tight enough. To do this on your own, you will need a fence puller or a come-along tool, and you can use temporary supports like clamps or wooden boards to keep the material or gate steady while fastening.
Yes, you can install a chain-link fence without concrete, but it is generally less stable and better suited for temporary fencing. If you decide to go without concrete, make sure to dig post holes that are at least two feet deep, which is about one-third the height of the post.
Avoid pounding the posts into the ground, especially in clay or rocky soil, as this can cause them to bend. Instead, make the holes slightly wider than the posts and backfill them tightly with packed soil.
While this method can save money and time, using concrete to anchor the posts provides much better stability and helps prevent shifting over time, especially in soils like clay.
Yes, it is possible to install a chain-link fence on a concrete surface, but it requires a different approach than installing in soil. Instead of burying the posts, you’ll attach them using metal brackets or anchors designed for concrete.
This means drilling into the concrete with a masonry drill bit and securing the anchors with bolts. After you firmly place the brackets, you can set and tighten the posts. To ensure the fence holds up over time, make sure you anchor the posts firmly and align them properly.
